Grafana#
Montplex Cache Monitoring Data Supports Grafana Charts: A Guide to Creating a Grafana Dashboard
Deploy Grafana#
- If you don't have a Grafana environment, you can quickly deploy a test environment using Docker:
docker run -d -p 3000:3000 --name grafana grafana/grafana
- Access your deployed Grafana at http://ip:3000/.
- The default username and password are admin/admin.
Create a Data Source#
- Visit your Grafana address and open the Grafana control panel.
- In the navigation pane, select the Connections tab under Data Sources.
- Select Add data source to open the data source addition page.
- Choose Prometheus under Time series databases to enter the Setting page.
- For Name, you can set it to the name of your Montplex Cache running environment, such as ap-southeast-1-vpc123.
- In the Connections settings section, for Prometheus server URL*, set it to the Prometheus interface exposed by your Montplex Cache running environment, such as:
http://k8s-ingressn-ingressn-7ef7e01112-5459e41a95330be8.elb.us-east-1.amazonaws.com:80/prometheus
- In the Authentication section, choose Basic authentication under Authentication methods and fill in the User/password.
- Keep the other configurations as default.
- Finally, select Save & test to complete the creation of the Prometheus data source.
Import Official Dashboard#

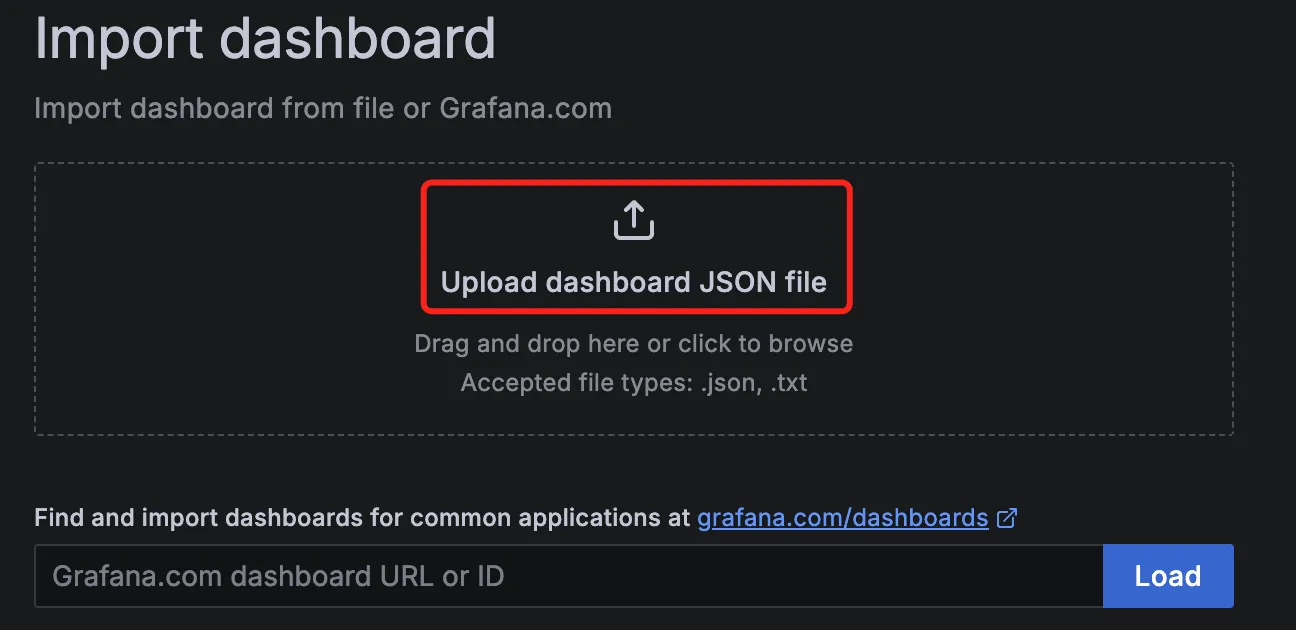

Grafana Dashboard supports one-click import of monitoring Dashboard ID or JSON files for Redis.
- Visit your Grafana address and open the Grafana control panel.
- In the navigation pane, select the Dashboards tab, click the New dropdown button in the top right corner, and choose import to go to the Import dashboard page.
- Choose a public Grafana Dashboard ID, such as: 11835
Note: For a list of Grafana Dashboard IDs, you can refer to Grafana dashboards | Grafana Labs
- On the Import dashboard page, enter 11835 in the text box and select Load to go to the data source selection page.

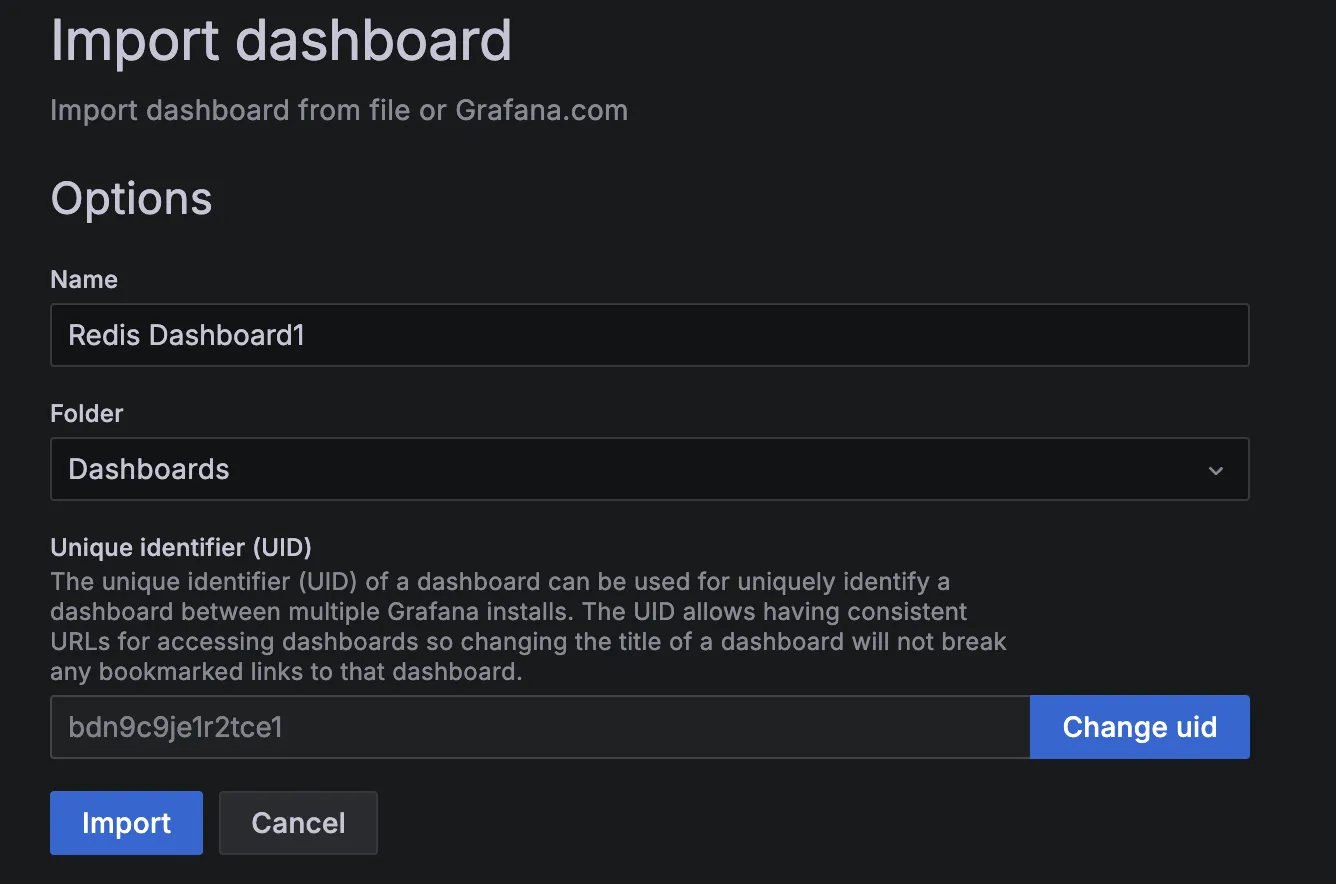

- You may rename the Dashboard or use the default name.
- Select the previously created data source, such as ap-southeast-1-vpc123.
- Select Import.

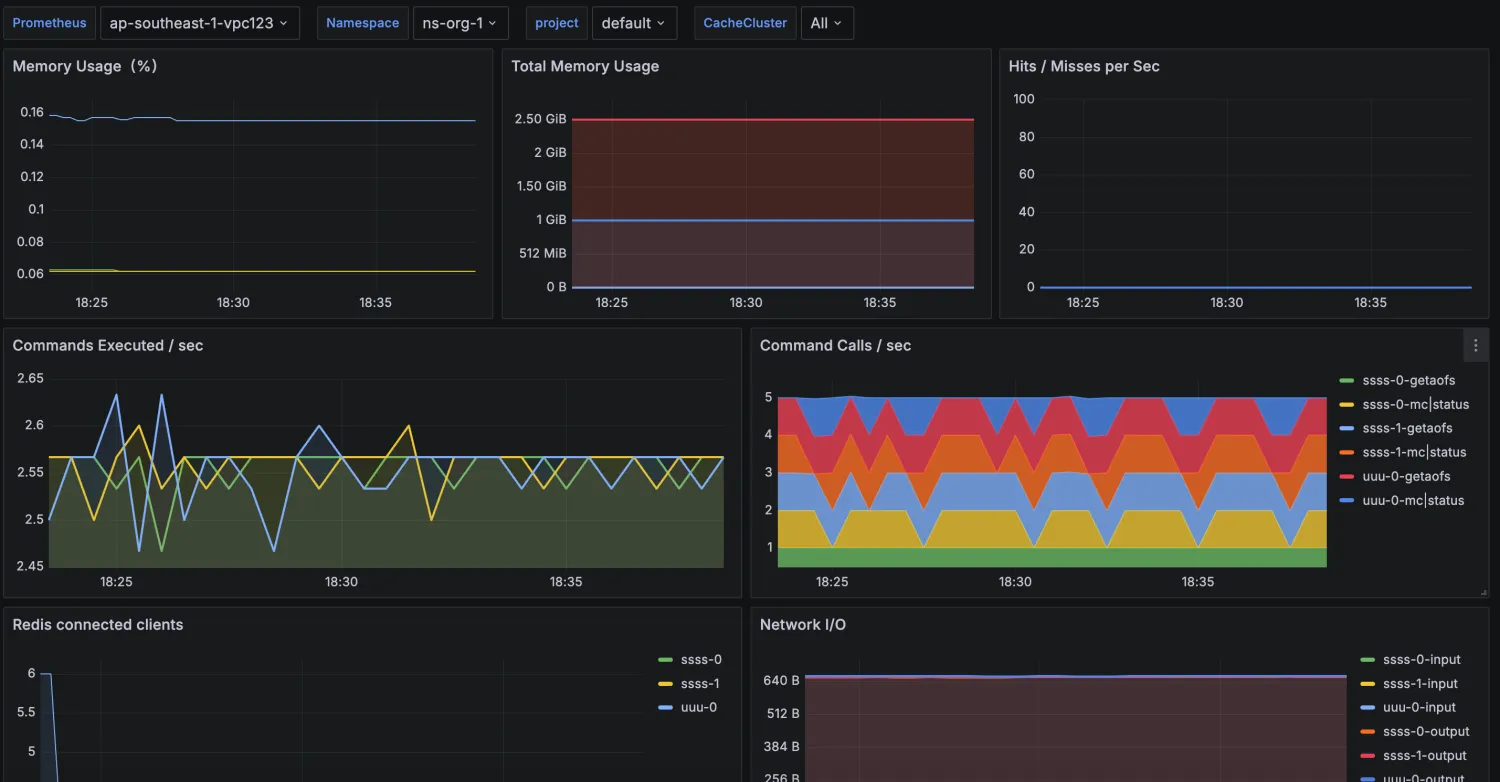

- Upon completion of import, you will automatically be redirected to the Dashboard page.
Import Custom Dashboard#

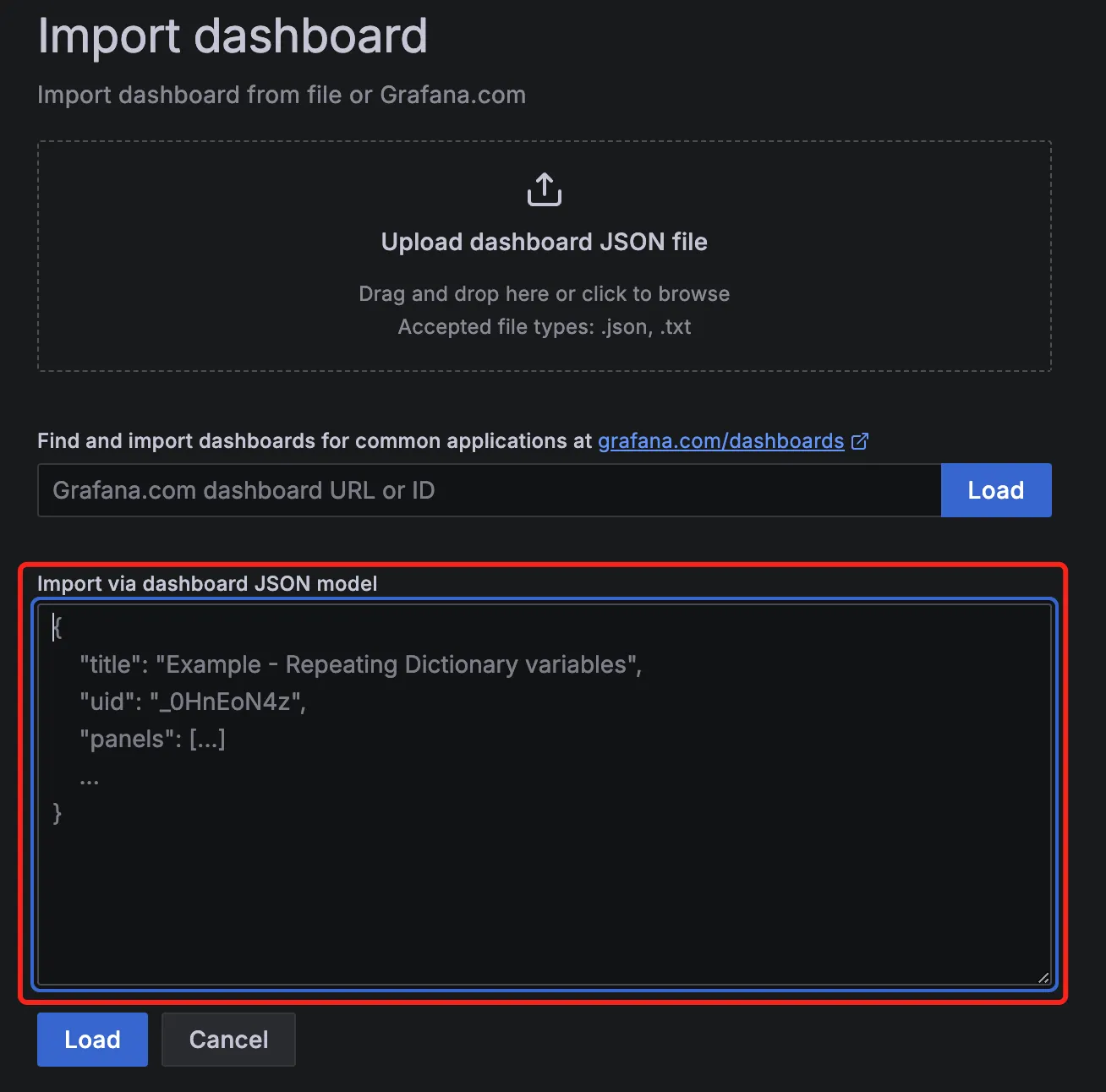

To match the organization and project logic within Montplex Cache, we provide a set of custom dashboards.
